[General]
Auto Brightness Checker especially for LCD Backlight is possible to measure 1.8h to
60h size. For large size Backlight, recommend to use our new designTS-593W.
Graph display for three dimensions & and data storage for pointed
brightness, color
degree and luminance distribution.
The test result is possible to storage to Microsoft Excel.
 |

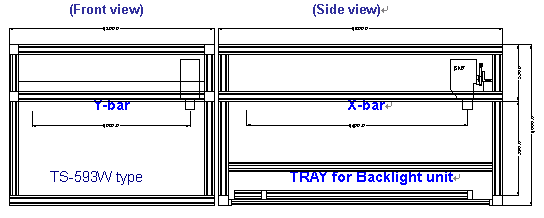

| [TS-593W type-square box style with X-Y bar inside] |
 |
[Specification]
| Model name |
TS-593 series |
| Measurement area |
250*250, 400*400, 500*500, 1400*1000mm |
| Outside dimension |
600*600*600, 800*800*600, 1800*1300*1000mm |
| Measuring points |
Max 625 points matrix & random |
| Measurement data |
Brightness, X-Y color degree coordinates
Measurement display, Graph display in 3D |

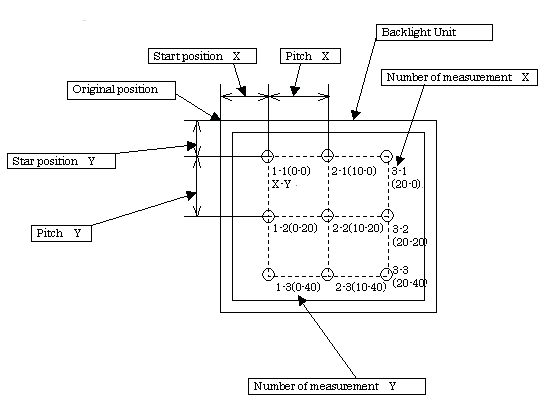

| Data registration |
Register in any name
X-Y measurement points, X-Y measurement pitch,
measurement average number, Timer for starting, etc. |
| Printing |
Measurement data / Graph display in 3D |
| Data storage |
Tsd / csv (csv is readable in Excel) |
| Input voltage |
AC 100V |
| Belong with |
Control software, Manual, USB cable |
| Option |
PC for control, Monitor, Keyboard, BM-7
(Applicable for only Japanese & English version of OS Win) |
[Major Model on TS-593 series ]
| Model No. |
Outline(W*H*Y)mm |
Stroke(X-Y)mm |
Suitable size(Backlight) |
| TS-593/25 |
600*600*600mm |
250*250mm |
1.8" ~ 10.4" |
| TS-593/40 |
800*800*600mm |
400*400mm |
1.8" ~ 17" |
| TS-593/50 |
800*800*600mm |
500*500mm |
1.8" ~ 21" |
| TS-593W |
1800*1300*1000mm |
1400*1000mm |
15" ~ 60" |
|
Available any outline spec. and stroke spec. according to the requirements.
Available any control method by developing new software according to
the requirements
Applicable any of brightness checker by developing software.
Possible to develop any data storage and display method by making minor change
of the standard software.
|
